swplot.legend#

Syntax#

swplot.legend

swplot.legend(switch, hFigure)

status = swplot.legend

Description#

swplot.legend adds legend to the active swplot figure.

swplot.legend(switch, hFigure) adds/removes/refreshes the legend on the swplot figure referenced by the hFigure handle depending on the switch string.

Examples#

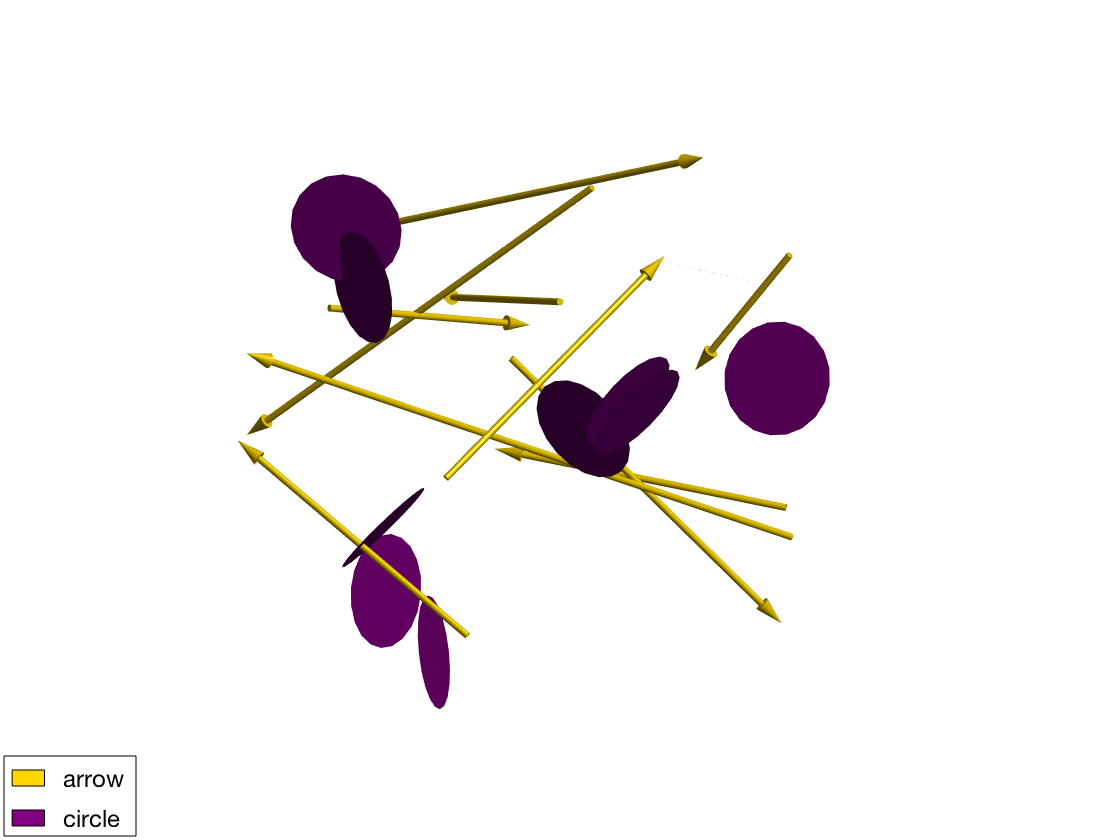

This example shows how the default legend for arrow and circle objects looks like.

swplot.plot('type','arrow','position',rand(3,10,2)*10-5,'legend',1,'color','gold')
swplot.plot('type','circle','position',rand(3,10,2)*10-5,'R',1,'legend',1,'color','purple')
swplot.zoom
swplot.legend
swplot.legend

Input Arguments#

switch

One of the following string:

  • 'on' show legend,

  • 'off' hide legend,

  • 'refresh' redraw legend,

  • '-'|'--'|'none' change the linestyle of the legend frame.

Default value is 'on'.

hFigure

Handle of the swplot figure, default value is the handle of the active figure.
