Tutorial 7#
k=0 Kagome antiferromagnet#
We create a lattice with space group “P -3” where all first neighbor bonds are symmetry equivalent and add a magnetic Cr+ with S=1 spin.

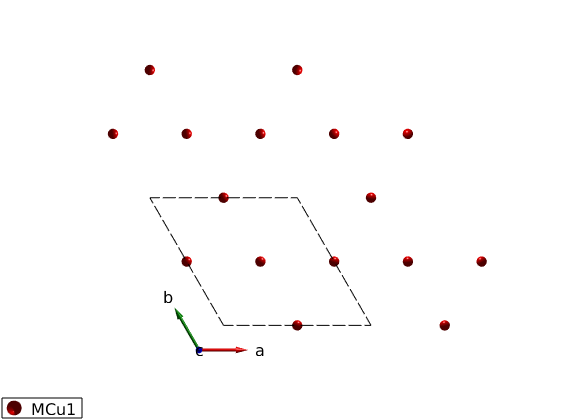

Define the lattice#
AFkagome = spinw;
AFkagome.genlattice('lat_const',[6 6 10],'angled',[90 90 120],'spgr','P -3')
AFkagome.addatom('r',[1/2 0 0],'S', 1,'label','MCu1','color','r')
plot(AFkagome,'range',[2 2 1])
Create bonds#
Generate the list of bonds and lists them.
AFkagome.gencoupling('maxDistance',7)
disp('Bonds:')
AFkagome.table('bond',[])
Bonds:
ans =
21x10 table
idx subidx dl dr length matom1 idx1 matom2 idx2 matrix
___ ______ ______________ ____________________ ______ ______ ____ ______ ____ ______________
1 1 0 1 0 0 0.5 0 3 'MCu1' 3 'MCu1' 1 '' '' ''
1 2 0 -1 0 -0.5 -0.5 0 3 'MCu1' 1 'MCu1' 2 '' '' ''
1 3 0 0 0 0.5 0 0 3 'MCu1' 2 'MCu1' 3 '' '' ''
1 4 0 0 0 0 -0.5 0 3 'MCu1' 3 'MCu1' 1 '' '' ''
1 5 1 0 0 0.5 0.5 0 3 'MCu1' 1 'MCu1' 2 '' '' ''
1 6 -1 0 0 -0.5 0 0 3 'MCu1' 2 'MCu1' 3 '' '' ''
2 1 1 -1 0 0.5 -0.5 0 5.196 'MCu1' 1 'MCu1' 2 '' '' ''
2 2 0 1 0 0.5 1 0 5.196 'MCu1' 2 'MCu1' 3 '' '' ''
2 3 -1 0 0 -1 -0.5 0 5.196 'MCu1' 3 'MCu1' 1 '' '' ''
2 4 0 0 0 -0.5 0.5 0 5.196 'MCu1' 1 'MCu1' 2 '' '' ''
2 5 -1 -1 0 -0.5 -1 0 5.196 'MCu1' 2 'MCu1' 3 '' '' ''
2 6 1 1 0 1 0.5 0 5.196 'MCu1' 3 'MCu1' 1 '' '' ''
3 1 0 1 0 0 1 0 6 'MCu1' 1 'MCu1' 1 '' '' ''
3 2 -1 -1 0 -1 -1 0 6 'MCu1' 2 'MCu1' 2 '' '' ''
3 3 1 0 0 1 0 0 6 'MCu1' 3 'MCu1' 3 '' '' ''
4 1 0 1 0 0 1 0 6 'MCu1' 2 'MCu1' 2 '' '' ''
4 2 -1 -1 0 -1 -1 0 6 'MCu1' 3 'MCu1' 3 '' '' ''
4 3 1 0 0 1 0 0 6 'MCu1' 1 'MCu1' 1 '' '' ''
5 1 0 1 0 0 1 0 6 'MCu1' 3 'MCu1' 3 '' '' ''
5 2 -1 -1 0 -1 -1 0 6 'MCu1' 1 'MCu1' 1 '' '' ''
5 3 1 0 0 1 0 0 6 'MCu1' 2 'MCu1' 2 '' '' ''

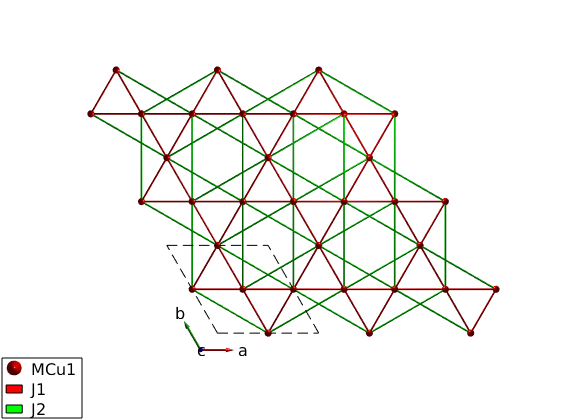

Hamiltonian#
We create AFM first neighbor interaction and weak 2nd neighbor AFM exchange.
AFkagome.addmatrix('label','J1','value',1.00,'color','r')
AFkagome.addmatrix('label','J2','value',0.11,'color','g')
AFkagome.addcoupling('mat','J1','bond',1)
AFkagome.addcoupling('mat','J2','bond',2)
plot(AFkagome,'range',[3 3 1])

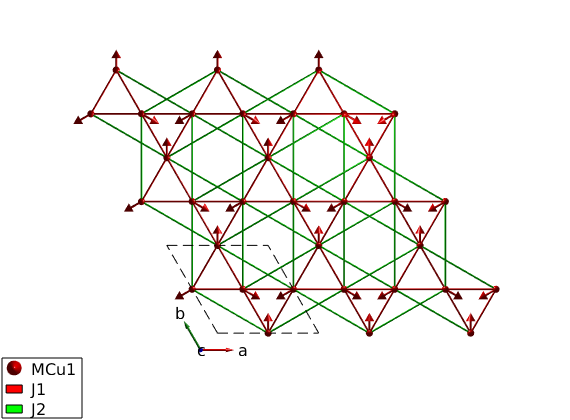

Generate magnetic structure#
We create a k = (0 0 0) magnetic structure, with the three spin directions in the unit cell (120 degree between neighbors). The spin vector components are given in the coordinate system of the lattice vectors (abc).
S0 = [1 -2 1; 2 -1 -1; 0 0 0];
AFkagome.genmagstr('mode','direct','k',[0 0 0],'n',[0 0 1],'unit','lu','S',S0);
disp('Magnetic structure:')
AFkagome.table('mag')
AFkagome.energy
plot(AFkagome,'range',[3 3 1])
Magnetic structure:
ans =
3x7 table
num matom idx S realFhat pos kvect
___ ______ ___ _ __________________________ _________________ ___________
1 'MCu1' 1 1 0 1 0 0.5 0 0 0 0 0
2 'MCu1' 2 1 -0.866 -0.5 0 0 0.5 0 0 0 0
3 'MCu1' 3 1 0.866 -0.5 0 0.5 0.5 0 0 0 0
Ground state energy: -1.110 meV/spin.

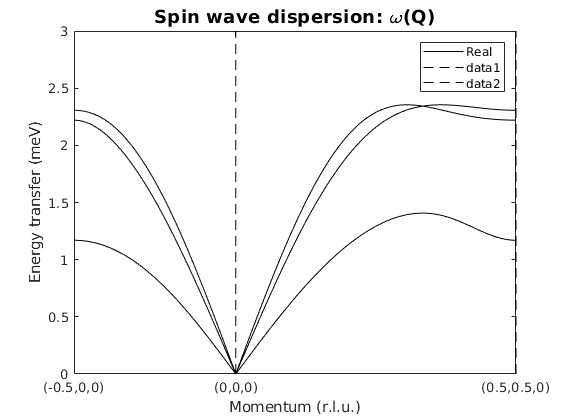

Calculate spin wave dispersion#
afkSpec = AFkagome.spinwave({[-1/2 0 0] [0 0 0] [1/2 1/2 0] 100},'hermit',false);
figure
sw_plotspec(afkSpec,'mode',1,'axLim',[0 3],'colorbar',false,'colormap',[0 0 0],'dashed',true)

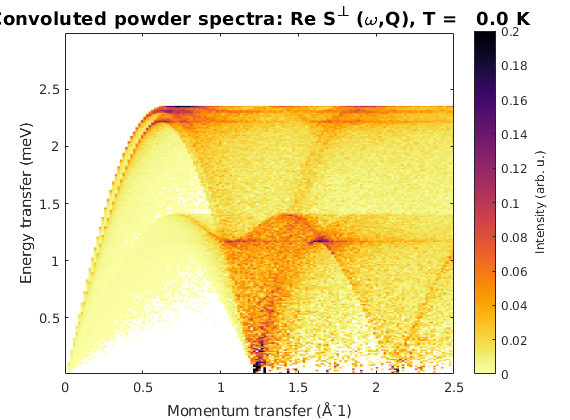

Powder spectrum#
afkPow = AFkagome.powspec(linspace(0,2.5,150),'Evect',linspace(0,3,250),...
'nRand',1e3,'hermit',false,'imagChk',false);
figure
sw_plotspec(afkPow,'axLim',[0 0.2])
Written by
Bjorn Fak & Sandor Toth
06-Jun-2014, 06-Feb-2016
Published with MATLAB® R2018b
